The Best Inversion Table for Big and Tall People: What's Verified, and What Isn't
We earn from qualifying purchases made through our links. How we make money
Our pick for big and tall users
Innova ITX1200
The best inversion table for big and tall people, among the ones we could verify. If you are close to or over 300 lb, this is the one.
- Rated to 350 lb by Innova itself, the only Innova or Teeter table above 300 lb
- Fits users from 4'10" to 6'6", as tall as any table you can buy today
- Adjustable stretch bars for a fuller stretch at lower slopes
- Weight limit
- 350 lb
- User height
- 4'10" to 6'6"
- Warranty
- 1 year
- Price range
- Mid-range
VerifiedSpecs from the maker's own product page
Best for tall users under 300 lb
Choose it if getting on and off is the hard part: the raised boarding platform and arched frame are built for that. Skip it if you are close to 300 lb, where its rating stops.
Finding the best inversion table for big and tall bodies is harder than most buying guides admit. We did not test these tables on people. Every spec here comes from a maker’s own page or manual. If you buy through our links we may earn a commission, and it has no say in what we recommend.
Big and Tall Inversion Tables Compared
Every cell below comes from the manufacturer. Where a maker publishes nothing, the table says “Not stated.”
| Spec | Editor's choiceInnova ITX1200Mid-range, price tier 2 of 3Verified | Teeter FitSpine LX9Premium, price tier 3 of 3Verified |
|---|---|---|
| Weight capacity | 350 lbHighest here | 300 lb |
| User height | 4'10" to 6'6" | 4'8" to 6'6" |
| Ankle system | Reversible ankle holding system | Deluxe EZ-Reach ankle lock with Ankle Comfort Dial |
| Warranty | 1 year limited | 5 years (extension to 10 sold separately)Highest here |
| Angle control | Three-position pin with protective cover; degrees not stated; adjustable stretch bars for a fuller stretch at lower slopes | EZ-Angle tether marked at 20°, 40° and 60°; full inversion with secure lockout |
| Heat and massage | None | None |
| FDA | Not stated | 510(k) cleared (K162702), Class I device |
| Assembly and setup | Not stated | 85% pre-assembled, BILT app instructions (brand-wide claim) |
| Buy | See today's price: Innova ITX1200 on Amazon (opens in a new tab) | See today's price: Teeter FitSpine LX9 on Amazon (opens in a new tab) |
Editor's choiceInnova ITX1200- Weight capacity
- 350 lbHighest here
- User height
- 4'10" to 6'6"
- Ankle system
- Reversible ankle holding system
- Warranty
- 1 year limited
- Angle control
- Three-position pin with protective cover; degrees not stated; adjustable stretch bars for a fuller stretch at lower slopes
- Heat and massage
- None
- FDA
- Not stated
- Assembly and setup
- Not stated
Teeter FitSpine LX9- Weight capacity
- 300 lb
- User height
- 4'8" to 6'6"
- Ankle system
- Deluxe EZ-Reach ankle lock with Ankle Comfort Dial
- Warranty
- 5 years (extension to 10 sold separately)Highest here
- Angle control
- EZ-Angle tether marked at 20°, 40° and 60°; full inversion with secure lockout
- Heat and massage
- None
- FDA
- 510(k) cleared (K162702), Class I device
- Assembly and setup
- 85% pre-assembled, BILT app instructions (brand-wide claim)
Verified from the maker's own page or manualClaimed retail listing onlyNot stated the maker publishes nothing
The ITX1200 is the capacity choice. The LX9 is the access choice, with a five-year warranty against Innova’s one year, but it stops at 300 lb.
Innova’s standard one-year limited warranty covers the original purchaser buying from an authorized retailer for personal use (Innova). That wording comes from Innova’s ITX9600 manual; the ITX1200 page states the same one-year term. Innova states no FDA status for this table, and our spec table says so. Our guide to the best inversion tables covers the full range below 300 lb and what separates them.
The Best Inversion Tables for Big and Tall People, Reviewed
Innova ITX1200: Best for Heavy Users Up to 350 lb
Innova publishes the ITX1200 with “a 350 lbs. weight capacity,” user heights of 4’10” to 6’6”, a heavy-duty steel frame and a three-position pin system (Innova). Innova adds adjustable stretch bars and a reversible ankle holding system. It does not add height: its range ends at 6’6”, like every other table on this page.
Rated to 350 lbVerified
by Innova
Best for heavier users who need more than a 300 lb rating.
Skip it if you are tall but comfortably under 300 lb and getting on is the struggle: the LX9 is built for that.
It is the only table from either Innova or Teeter that the maker rates above 300 lb: Innova publishes 350 lb for it, where every other model in both ranges stops at 300 lb or lower.
- Weight limit
- 350 lb
- User height
- 4'10" to 6'6"
- Warranty
- 1 year
- Price range
- Mid-range
What we like
- 350 lb capacity, the highest in the Innova and Teeter ranges
- Adjustable stretch bars for a fuller stretch at lower slopes
- Reversible ankle holding system
- Pin with a protective cover
Keep in mind
- Only three pin positions, with degrees not stated
- One-year limited warranty
- Max height 6 ft 6 in, the same as the 300 lb models
- No heat or massage
Full specs
- Price range
- Mid-range
- Weight capacity
- 350 lb
- User height
- 4'10" to 6'6"
- Angle control
- Three-position pin with protective cover; degrees not stated; adjustable stretch bars for a fuller stretch at lower slopes
- Ankle system
- Reversible ankle holding system
- Heat and massage
- None
- Warranty
- 1 year limited
- FDA
- Not stated
VerifiedFrom the maker's product page. Not stated means the maker publishes nothing.
We may earn a commission. It never changes which table we pick, or the order they appear in.
Teeter FitSpine LX9: Best for Tall Users Under 300 lb
Teeter describes an arched “LX Ergonomic Frame” designed “for effortless entry and exit” and a “Raised Boarding Platform” that “makes stepping into the Ankle Lock System easier” (Teeter). Otherwise it shares the X3’s angle system, ankle lock, 300 lb capacity and 4’8” to 6’6” range. It costs more than the X3 and earns that only if getting on and off is where you struggle. Close to 300 lb, it is the wrong table: the ITX1200 gives you the margin the LX9 can’t. Our Teeter LX9 page looks at it on its own.
Raised boarding platformVerified
by TEETER
Best for tall users under 300 lb who struggle to get on and off.
Skip it if you are close to 300 lb: the ITX1200 gives you the margin the LX9 can't.
Same angle system as the X3, plus a boarding platform with an arched frame. Worth the step up only if getting on and off the table is the hard part for you.
- Weight limit
- 300 lb
- User height
- 4'8" to 6'6"
- Warranty
- 5 years
- Price range
- Premium
What we like
- Raised boarding platform and arched frame for getting on and off
- Same 20°, 40° and 60° marked tether as the X3
- Five-year full warranty, with a five-year extension sold separately
- Ships with a Storage Caddy and traction handles on the hinges
Keep in mind
- Otherwise identical to the X3, so you pay for the platform
- Roller hinge setting must match your body weight, per the manual
- No heat or massage
- Rated to 300 lb, max height 6 ft 6 in
Full specs
- Price range
- Premium
- Weight capacity
- 300 lb
- User height
- 4'8" to 6'6"
- Angle control
- EZ-Angle tether marked at 20°, 40° and 60°; full inversion with secure lockout
- Ankle system
- Deluxe EZ-Reach ankle lock with Ankle Comfort Dial
- Heat and massage
- None
- Warranty
- 5 years (extension to 10 sold separately)
- FDA
- 510(k) cleared (K162702), Class I device
VerifiedFrom the maker's product page. Not stated means the maker publishes nothing.
We may earn a commission. It never changes which table we pick, or the order they appear in.
How We Chose
Our rules
The maker's own word
Only limits a manufacturer states on a page or document it controls: a product page, a support article or an owner's manual.
Listings don't count
A number that appears only in a marketplace title did not count, because the seller writes the title.
No maker, no pick
If a brand had no working manufacturer behind it, we treated its numbers as unverified.
We only counted a height or weight limit the manufacturer states on a page or document it controls: a product page, a support article or an owner’s manual. A number that appears only in a marketplace title did not count, because the seller writes the title. If a brand had no working manufacturer behind it, we treated its numbers as unverified, however often other sites repeat them. The ITX1200’s capacity sits on a page Innova controls. That is why we trust it over higher numbers from brands we couldn’t trace.
Big and Tall Is Two Profiles
A higher weight rating does not come with a longer frame, and a taller user is not always a heavier one. At 6’5” and 210 lb, or 5’11” and 320 lb, you have two different buying problems.
So this page splits the advice. If you are mainly tall, check the height range and how easy the table is to get on. If you are mainly heavy, check the capacity. If you are both, height usually rules a table out first. In every case, no manufacturer rates your feet and ankles.
Tables Advertised for 6’8” and Taller
You will find tables advertised for 6’8” or even 6’11”. We traced the two you are most likely to meet.
The Health Mark Pro Max is the only one with a manufacturer’s number behind it. Health Mark’s own product page listed height settings “to accommodate heights of 4-ft. 10-in. to 6-ft. 11-in.” and a 600 lb capacity (Health Mark, 2023 archive). The catch is the date and the stock. That page is the Wayback Machine’s capture of May 29, 2023, the most recent available, and it already marked the table “Out of stock.” No current Health Mark page shows it on sale. It is a real published spec, but a historical one, and we can’t recommend you buy it.
The Teclor is the other name you will see, often listed for users up to 6’8”. Some big-and-tall roundups call it the tall-user choice. We could not find a manufacturer behind that number. The brand’s own domain is listed for sale, and the 6’8” figure lives in marketplace listings and on sites that repeat them, not on any maker’s spec sheet. A table holds you upside down by the ankles, so we won’t take its height limit from a listing alone.
One more tall figure did come from a manufacturer. Health Gear’s product page for its ITM7.5 Big & Tall table, archived in October 2024, said the frame “accommodates up to 7′ tall users” (Health Gear, 2024 archive). Extreme Products Group, the company behind Health Gear, has since stated on its own site that it “has ceased operations and is no longer in business” (Extreme Products Group, 2025). It filed for Chapter 7 bankruptcy in September 2025, according to BankruptcyObserver (BankruptcyObserver, 2025). Like the Pro Max, it is a real spec from a maker that can no longer sell or support the table. Our page on Health Gear inversion tables covers what happened.
What Our Spec Table Leaves Blank
Neither Innova nor Teeter publishes a backrest width or a bed dimension that shows how much room your torso gets. Innova describes the ITX1200 as having a “Heavy Duty Steel Frame” (Innova), with no width or steel thickness. The ITX9600 manual’s overall width (28 inches) is the footprint of the whole frame, legs included, not the surface you lie on. So our spec tables leave width out, and we won’t estimate it.
We also looked for a shoe size, foot size or boot size limit from Innova and Teeter and found none.
What Is the Tallest Inversion Table?
Among the tables we could verify and buy today, the tallest rating is 6’6”. Paying more does not buy more length. That is the most common surprise for tall buyers: the height range barely changes from one table to the next.
Teeter and Innova Both Stop at 6’6”
Teeter answers for its whole range in one line: all Teeter inversion tables “are rated for users between 4’8″-6’6″ and up to 300 lb” (Teeter). That covers the X1, X3, LX9 and EP-560 alike. A more expensive Teeter changes the features, not the fit for a tall body.
Innova is the same at the top. Its heavy-duty ITX1200 fits users from 4’10” to 6’6” (Innova), and every other Innova model we checked stops at the same 6’6”. The lower end differs slightly (4’8” for Teeter, 4’10” for Innova), which only matters if you share the table with a shorter partner.
- Teeter FitSpine X14'8" to 6'6"
- Teeter FitSpine X34'8" to 6'6"
- Teeter FitSpine LX94'8" to 6'6"
- Innova ITX96004'10" to 6'6"
- Innova ITX12004'10" to 6'6"
- Innova ITM48004'10" to 6'6"
- Innova ITM59004'10" to 6'6"
- Innova ITM60004'10" to 6'6"
- Innova ITX99004'10" to 6'6"
Source: Teeter FitSpine X1, FitSpine X3, FitSpine LX9; Innova ITX9600, ITX1200, ITM4800, ITM5900, ITM6000, ITX9900.
What if You’re Taller Than 6’6”?
We don’t have a pick for you. No table we could verify and buy today is rated above 6’6”, and we won’t send you to one whose number we couldn’t confirm, like the taller claims we checked. Outside its published height range, a table’s ankle holders and pivot point are set for a body the maker did not design them for. If you are 6’7” or taller and still want to try inversion, contact a manufacturer directly. Ask whether any current model is rated for your height, and get the answer in writing before you order.
Is Getting On Harder When You’re Tall?
Often, yes. If you are tall but within a standard weight rating, you don’t need the ITX1200’s extra capacity. What matters more for a long body is how easily you get into the ankle lock and back out.

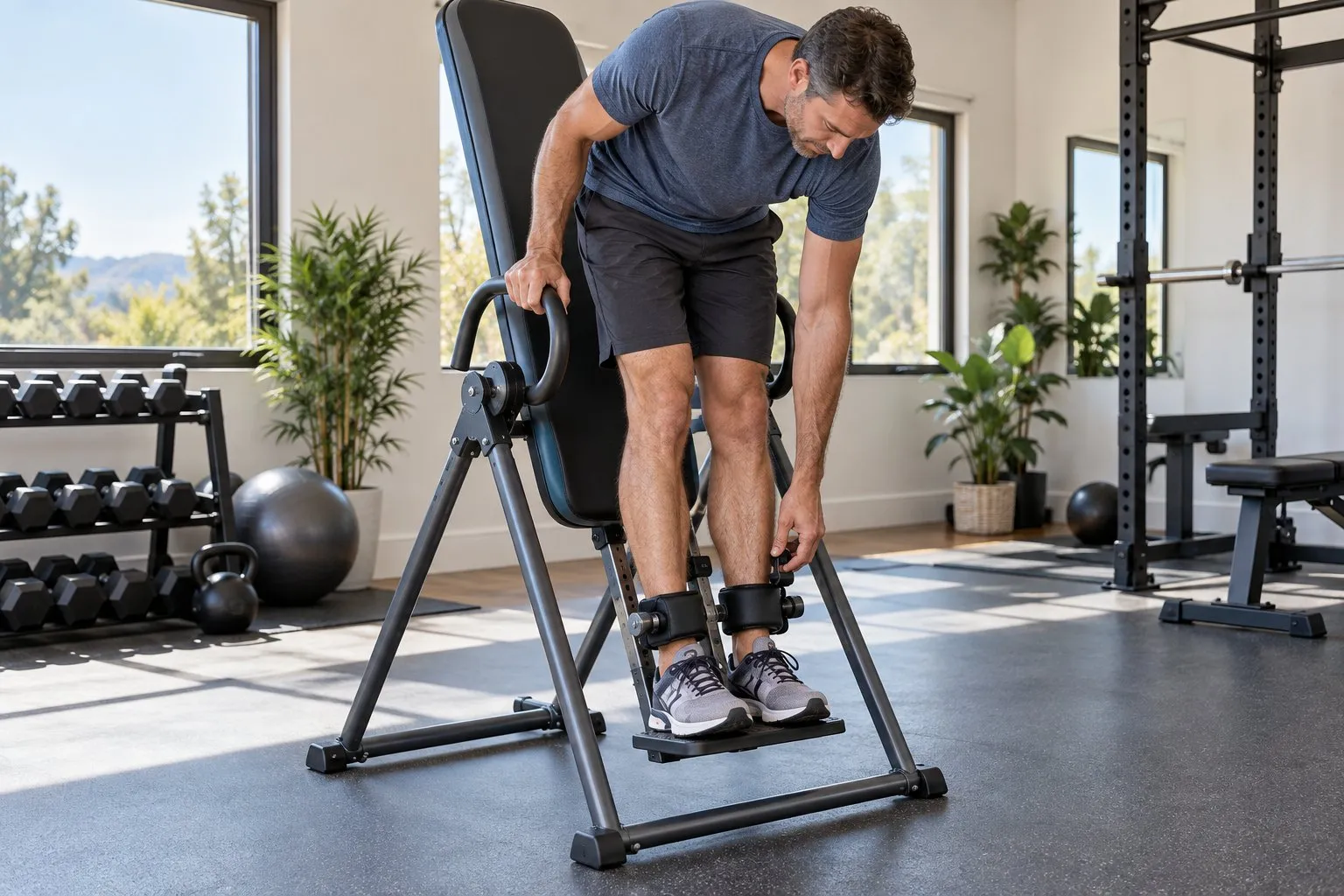

Stepping into an ankle lock means balancing on one foot, reaching down and locking yourself in while standing on the footplate. The longer your legs, the further that reach. The Teeter LX9 is built around this problem, with its raised boarding platform.
How Much Room Does a Tall User Need?
At least 2 feet on each side and 3 feet front and back, going by Innova’s manual. A tall user on a fully inverted table sweeps a bigger arc, and the frame itself is long. Innova’s ITX9600 manual gives the assembled table as 52 x 28 x 59 inches, and its clearance includes room for an emergency dismount (Innova). That instruction is for the ITX9600, but it is a sensible minimum for any table.
How much floor a table needs
- Assembled table
- 52 × 28 in, 59 in tall
- Front to back
- 52 + 36 + 36 = 124 in (10 ft 4 in)
- Side to side
- 28 + 24 + 24 = 76 in (6 ft 4 in)
- Clear floor area
- 124 × 76 = 9,424 sq in, about 65.4 sq ft
Weight Limits: 300 lb, 350 lb and Above
Most tables stop at 300 lb, and the Innova ITX1200 is the one table we could verify at 350 lb.
Why a 300 lb Rating Leaves No Margin
Every other Innova model stops at 300 lb or lower, and every Teeter at 300 lb. At around 300 lb, a standard table puts you exactly at its limit. The ITX1200 gives you 50 lb of headroom.
- Teeter FitSpine X1300 lb
- Teeter FitSpine X3300 lb
- Teeter FitSpine LX9300 lb
- Innova ITX9600300 lb
- Innova ITX1200350 lb
- Innova ITM4800300 lb
- Innova ITM5900300 lb
- Innova ITM6000300 lb
- Innova ITX9900300 lb
Source: Teeter FitSpine X1, FitSpine X3, FitSpine LX9; Innova ITX9600, ITX1200, ITM4800, ITM5900, ITM6000, ITX9900.
Over 220 lb? Set the Roller Hinge
Teeter’s LX-series tables have a second adjustment tied to body weight. The Roller Hinge has three hole settings, from A (most responsive) to C (least responsive), and Teeter’s assembly manual matches them to your weight.
A heavier body on the most responsive setting rotates faster than you may expect. If you weigh over 220 lb, check this setting during assembly. It is easy to leave it as the box arrived.
Inversion Tables Above 350 lb
We could not verify an inversion table rated above 350 lb that you can buy today. A couple of other brands publish the same 350 lb figure. Several products advertised at 400 lb turn out to be flat traction benches that never turn you upside down. Our page on inversion tables with a 400 lb capacity lays out every capacity we checked, maker by maker, and your options above the verified ceiling.
Feet, Ankles and Shoes
Your foot needs to be held securely, whatever its size. Tall people tend to have bigger feet, and heavier people put more load through their ankles. Both matter on a device that holds you by the lower legs, and no spec sheet we read covers either.
Is There a Shoe Size Limit?
No maker sets one. The practical question is not whether your foot size is “allowed,” but whether your foot is held securely. Innova does publish advice on the type of shoe: its FAQ says “Wear proper footwear with top laced shoes can help provide extra cushion and support for your feet / ankles,” and recommends athletic shoes for new users (Innova).
Why a Loose Shoe Matters
A 2021 report on three cervical spinal cord injuries after inversion table falls includes a case that speaks directly to this. A 63-year-old woman using a table at a public exercise facility was fully inverted when, in the authors’ words, “her feet slipped out of her shoes, and she fell and hit her head on the ground.” She suffered immediate paralysis of the whole body (Jung, 2021).
It is one case among three, so it cannot tell you how often this happens or show that larger feet raise the risk. It shows the mechanism: the ankle holder gripped the shoe, and the foot came out of it.

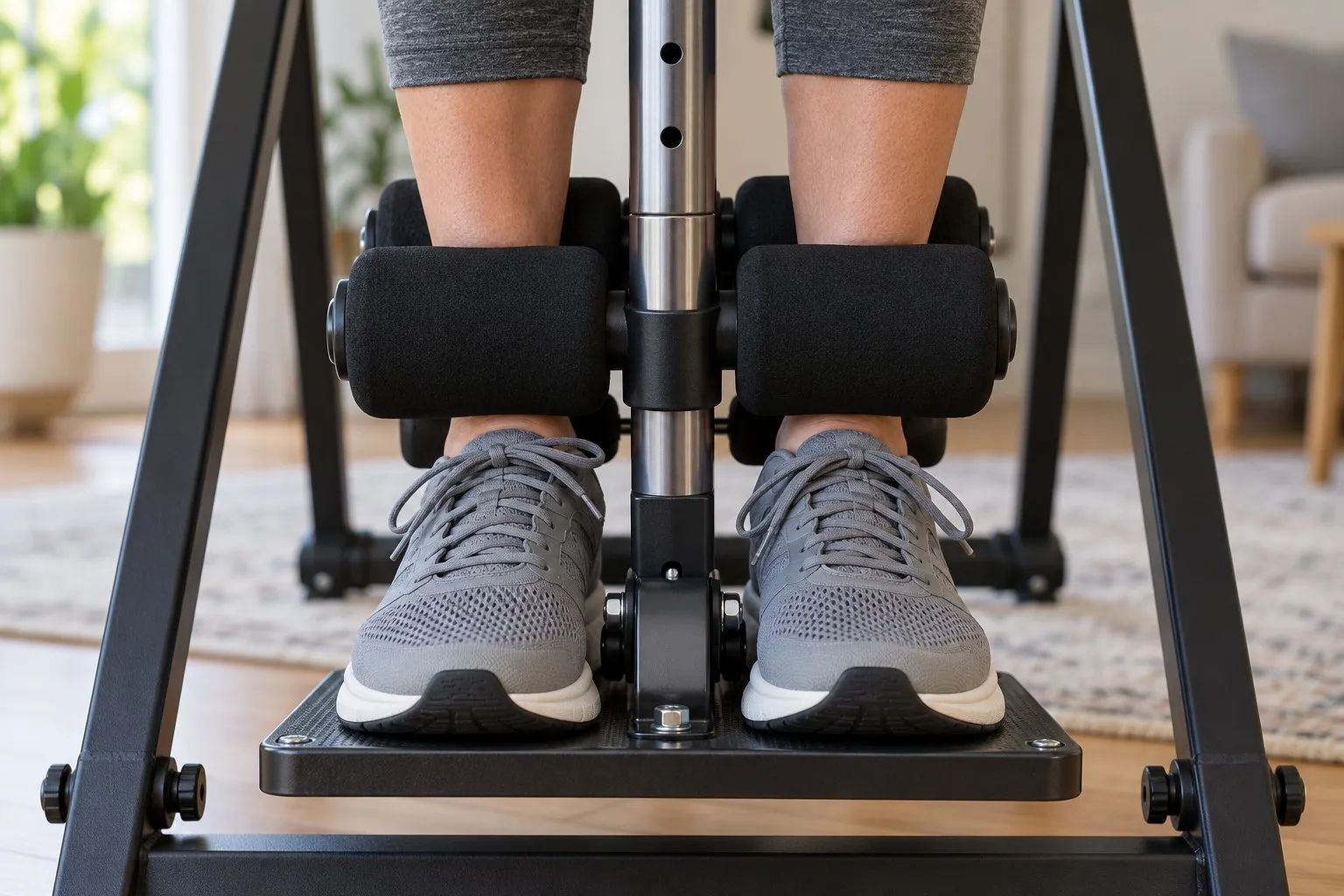

How to Set Up Your Feet
Wear laced athletic shoes, tied firmly. Skip slip-ons, sandals and worn-out trainers with a loose heel. Before every session, check that the ankle holders sit snugly above the ankle bone and that you can’t pull your heel up inside them. With large feet, make sure the whole foot sits on the footplate, not over its edge.
Then lock the ankle system fully, every time. On Teeter’s Deluxe EZ-Reach ankle lock, opening it takes three deliberate steps: “Press the button; Pull the handle slightly toward your legs; Push the handle outward” (Teeter). That internal safety lock stops the clamp opening with a single accidental movement. Whatever table you use, learn how its lock engages and releases while you stand upright, before you ever tilt back.
Table Width: Will a Large Frame Fit?
You judge it yourself, by lying on the table, because no maker publishes a backrest width. Broad shoulders and a wide torso raise a fair question the spec sheets don’t answer: will the backrest actually hold me?
How to Judge Fit Without a Number
Without a published width, fit comes down to a few checks. Lie flat on the table before you invert. Your shoulders and hips should rest on the backrest with neither side hanging off. Your arms should move freely, with no frame pressing into them. Tilt slightly: you should feel centered, not pulled to one side.
Buying Online? Check the Returns First
If you can see a table in a store, lie on it. If you are buying online, check the return terms before you order, so a table that doesn’t fit your frame isn’t a sunk cost.
What the Makers Ask of Heavier Users
Both Innova and Teeter list obesity among the conditions that need a doctor’s approval before you use a table. Read their lists before you choose one, not after.
Innova’s List
Innova’s ITX9600 manual says not to use the table without a licensed physician’s approval if any of 21 listed conditions apply. The list includes “Overweight / Extremely Obese” and, separately, “Weak ankles and/or feet” (Innova). Teeter’s list lacks the ankle item, and it is the one most closely tied to how inversion accidents happen.
Teeter’s List
Teeter’s contraindication list, which the company says also appears in its owner’s manual, includes obesity among conditions where a physician may restrict exercise, alongside pregnancy and recent surgery. Its instruction is direct: “DO NOT use until approved by a licensed physician” (Teeter).
What This Means for You
These are manufacturer lists, written with legal caution, not the findings of a trial. They don’t say a larger person can’t invert. They say the conversation with a doctor comes first. When both brands say so, take it seriously.
Bring the specific table, its weight rating and the angle you plan to use, so the advice fits what you will actually do. Our page on who should not use an inversion table walks through each condition on the makers’ lists, with the evidence behind it.
Fall Risk and a Safe Setup
Falls are the risk to plan for, and a few habits make a real difference. We raise this not to put you off, but because the case reports single out heavier users.
How an Inversion Table Fall Happens
The authors of that 2021 case series liken the mechanism to a diving injury: once ankle strength is lost or a foot slips, the user lands on the top of the head. Falls from one or two feet high, they note, are “by no means negligible” (Jung, 2021). It is a report of three cases, so it gives no rate. But the mechanism explains why heavier users should watch the ankles more than the frame: more body weight means more force on the ankles while inverted, and more force behind a fall if they give way.
What the Case Report Authors Recommend
The same authors recommend keeping sessions under one minute and placing an angled pillow or rubber ramp just below the head, so a slip becomes a slide rather than a drop. They write that users, “especially aged or obese female users,” should be cautious to avoid falling (Jung, 2021). This is the authors’ advice, not a clinical consensus, but it is the most specific we found for heavier users.
A Safer Setup for a Bigger Body
Start low. Teeter tells new users to limit their first sessions to somewhere between 20 and 45 degrees and increase the angle gradually (Teeter, 2020), and Innova tells users to start at a low inversion position and let the body get used to it (Innova).
Have someone with you: Innova’s FAQ says to have a spotter, a friend or family member, while you use the table (Innova). Coming back up, Teeter says to stop and rest just short of horizontal before sitting upright, and not to lift your head if you get stuck (Teeter, 2020). None of this needs extra equipment, and all of it lowers the chance that a slip becomes a fall.
For a beginner routine that stays at gentle angles, see our inversion table exercises for beginners.
How to Choose an Inversion Table for Big and Tall Users
The choice is simpler than the size of the market suggests. Work through it in this order.
Start With Height
If you are over 6’6”, stop here: we could verify no table for you. Contact a maker directly rather than rely on a listing. At 6’6” or under, every table on this page fits you, and height stops being the deciding factor.
Then Weight
If you weigh more than 300 lb, or close enough that a 300 lb rating leaves no real margin, the ITX1200 is our pick at 350 lb. Over 350 lb, see our 400 lb page before buying anything. Comfortably under 300 lb, you can choose on features instead of capacity.
Then Access and Feet
If getting into the ankle lock is the hard part, the LX9’s raised platform is the feature that helps. Whichever table you choose, budget for a good pair of laced athletic shoes and learn the ankle lock before your first inversion.
Last, Your Doctor
Both makers ask heavier users to get a physician’s approval first. Do that before you buy, not after, so the table you order is one you can actually use.
Your questions, answered
Frequently Asked Questions
Can overweight people use an inversion table?
Many can, within two limits. The first is the table: most are rated to 300 lb, and the Innova ITX1200 goes to 350 lb. The second is you: Innova and Teeter both put obesity on the list of conditions that need a doctor's approval first, because your ankles hold your full weight upside down. Get that approval, then stay inside the rating.
Why does my ankle hurt when I use the inversion table?
Usually because your ankles are carrying your entire body weight while you hang, and the heavier you are, the more pressure lands on that small area. Laced athletic shoes, which Innova recommends, add cushion and support and help keep your feet in place. Check that the holders sit snugly above the ankle bone. Pain that keeps coming back is a reason to stop and ask a doctor.
14 sources used for this guide
Each linked to the original. Citations in the text jump here.
View sources
Teeter. What are the height and weight ratings for the Teeter Inversion Table?. teeter.com, Support Center.
Innova. ITX1200 Inversion Table. innovaproductsinc.com, product page.
Health Mark, Inc. Pro Max Inversion Table - Back Inversion Table. healthmarkinc.us product page, as archived by the Wayback Machine on May 29, 2023.
Extreme Products Group (Health Gear). ITM 7.5 Big & Tall Inversion Table. extremeproductsgroup.com product page, as archived by the Wayback Machine on October 9, 2024.
Extreme Products Group, LLC. Extreme Products Group, LLC has ceased operations. extremeproductsgroup.com, as archived by the Wayback Machine on January 20, 2025.
BankruptcyObserver. EXTREME PRODUCTS GROUP, LLC Chapter 7 Bankruptcy 2025. bankruptcyobserver.com, sourced from PACER.
Innova. ITX9600 Heavy Duty Deluxe Inversion Therapy Table, Owner's Manual (version 1709AJJ). Innova Products Inc., owner's manual.
Teeter. FitSpine LX9 Inversion Table. teeter.com, product page.
Teeter. Assemble Your FitSpine LX Inversion Table: Assembly Instructions (models LX4 to LX9), rev. LX1040B 0123-0. teeter.com/wp-content/uploads/2023/03/FitSpine-LX-Series_Assembly-Instructions_LX4-thru-LX9_LX1040B_0123-0.pdf.
Jung SH, Hwang JM, Kim CH. Inversion Table Fall Injury, the Phantom Menace: Three Case Reports on Cervical Spinal Cord Injury. Healthcare (Basel) 2021;9(5):492.
Innova. Frequently Asked Questions. innovaproductsinc.com/faq/.
Teeter. How to use the Deluxe EZ-Reach Ankle Lock System. teeter.com, Support Center.
Teeter. Are there health issues that would prevent me from inverting?. teeter.com, Support Center (the same list appears in the owner's manual).
Teeter. How to Use an Inversion Table. teeter.com blog, 2020 (updated 2022).
